Comfortplast Cages are computer designed and manufactured with long lasting high quality material. Mesh structure is manufactured with full Polypropylene (PP) plastic material and no need for fixing materials to assembly.

After incubation chick care is very important. Chick Brooders provide an excellent starting environment for chicks with superior technical features and hygiene standards. Brooders are used for initial 4 to 6 week of chick’s life.

This product is primarily designed and developed for quail, partridge and pheasant chicks.

It is suitable for use in the first 3 weeks for chicken, goose, duck, turkey chicks, it is not recommended for the following weeks.

Product is ideal for the hobbyist starting their own chick raising or for those who have existing brooders and want to increase their population of chicks. This product is the most professional commercial brooder on the market.

The brooder is manure resistant and is produced from high-strength plastic. All parts are easily assembled, disassembled, sturdy and durable. Strong plastic material ensures product stability and the rounded internal and external corners prevent injuries.

BROODER TECHNICAL FEATURES

Capacity
Quail Week 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer
1 45-55 90-110 135-165 180-220 225-275
2 35-45 70-90 105-135 140-180 175-225
3 30-40 60-80 90-120 120-160 150-200
4 24-30 48-60 72-90 96-120 120-150


Pheasant Partridge Week 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer
1 35-45 70-90 105-135 140-180 175-225
2 30-35 60-70 90-105 120-140 150-175
3 25-30 50-60 75-90 100-120 125-150
4 20-25 40-50 60-75 80-100 100-125



For Each Tier

  • Chicken - Duck chicks: 30-35 (5 Tier 120-140)
  • Turkey - Goose chick : 15-18 (5 Tier 60-72)
Numbers given are for first 7 to 10 days - amount will decrease around 10-15 chicks for each of the following weeks,

Highlighted capacities indicate the max number of weeks heat is required from brooder!



Cage Structure

  • Closed form provides high heat and energy savings
  • Maximum daylight for chicks with semi-transparent layer design
  • High heat resistance structure
  • Easy to clean and high hygiene standards
  • Natural air entry and exit holes along the cage
  • Integrated non-woven floor structure
  • Chick mats for the first two weeks
  • Ease of movement with lockable wheels
  • Shipped unassembled
  • Assembly instructions provided and are easy to understand

Maximum daylight for chicks with semi-transparent layer design


Heating:

  • Automatic Heating Module for each tier
  • Independent modular design
  • Anodized aluminum stainless steel module, non-rusting
  • Guards prevent chicks from touching the heater
  • 220V AC operating voltage
  • 125W stainless steel tube heater

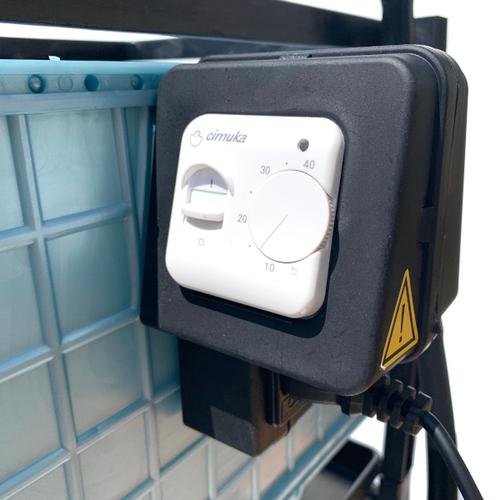

  • Automatic temperature control with adjustable thermostat 0-40°C (30-104F°)
  • Requires one E 27 bulb (bulb not included in the package)
  • Heater LED indicator for on and off status
  • Each level has a separate fuse protection

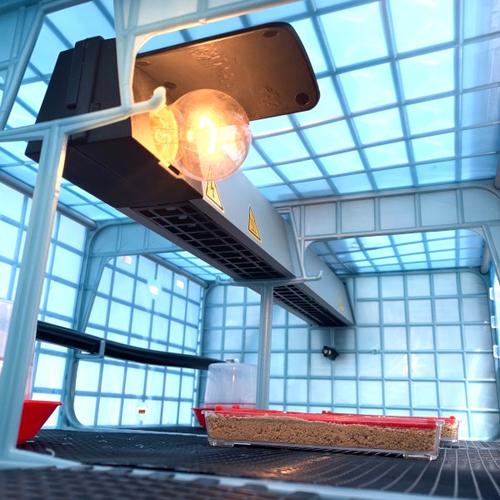

Automatic Heating Module for each tier


Feeding:

  • Plastic feeders along each floor
  • Easy cleaning with integrated feeder structure

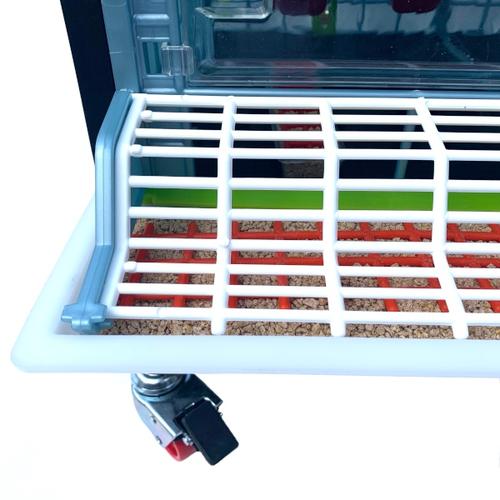

  • Plastic grid prevents chicks from escaping
  • Grills prevent disintegration with feed manger
  • Includes 3 starter chick feeders per tier

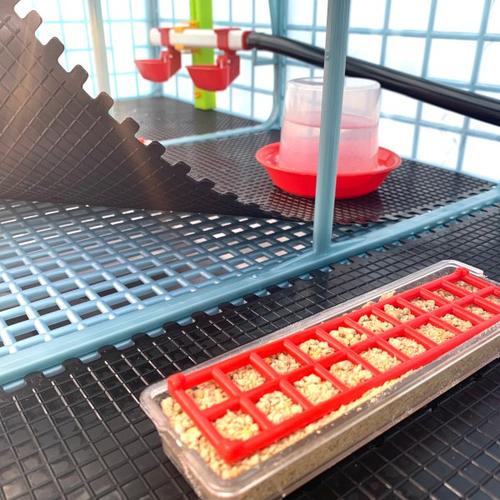

Plastic Feeders for each tier


Watering:

  • 20 liter water tank capacity
  • Automatic nipple watering system
  • Adjustable height linkage according to chick height
  • Does not require adhesive to assembly watering clamp
  • Black silicone hose prevents algae
  • Includes 2 baby chick watering cups per tier

Dimensions:

  • Product Block Dimensions: L(96cm) x W(59cm) x H(196cm)
  • Product Inner Dimensions for one layer: L(90cm) x W(43cm) x H(25cm)


Cages System

The best for your Birds!TM

The first in the world with patent design models. Comfortplast Series cages, We have over 30 years of production experience, our cages are scientifically developed and has been designed according to the demands of poultry, gamebird growers from around the world.

All of the cages are fertilizer resistant and is produced from high-strength plastic. It is made with 100% recycled raw materials generating from 200 pieces by injection molding, and original drawing and using vacuum technology.

Easy to Clean
Power-Washable
Rust-Proof
Extremely Durable
Stackable Layers
Easy to Assemble

Poultry scientists have worked vigorously to provide you with the most sanitary, stackable units around.

Made from Polypropylene (PP) plastic material, the modular parts are easily put together and can be disassembled for transportation. Modular design means you can mix-n-match cages and brooders to create a custom experience. The unit can be power-washed and will not rust! No rust means a longer life and less disease. Stopping disease and foot problems associated with rust are our #1 concern.

Treat your animals with respect and take care of their hygiene.



The Comfort That Comes with Elliptical Base..The Comfort That Comes with Elliptical Base..
The specially designed base for birds provides comfort standing, walking, spawning and mating egg production fertility rates are higher.

When increasing the base strength with its elliptical base design the fertilizer adhesion is also reduced.

Flexible material structure obstructs the formation of foot problem


Appropriate Base Slope..
With this procedure you will be able to save on any damaged, cracked, missing or any eggs covered in fesies.

You will also save time in looking/searching for eggs, with this system clean eggs are rolled forward into the oviduct which will also save you time in packaging. Your full days work will be radically decreased giving you extra time to move onto your next job.

Chick Brooder Housing - 5Tier / H25 Assembly Parts List
Chick Brooder Housing - 5Tier / H25 Assembly Guide
Chick Brooder Housing - 5Tier / H25 User Manual

Frequently Asked Questions About This Product

Here, general common questions in comfortplast cage systems are discussed. For more detailed inquiries, visit our FAQs page.

  • What should I do to set up my cage exactly right?

    - Use the Assembly Guide that comes with the package.
    - Also, be sure to watch the Assembly Video on the product page.
    - If the Assembly Guide does not appear in the package (it can happen very rarely), you can dowloand all the necessary documents from the "Product Instructions" tab on the product page.

  • What happens if I setup the Comfortplast cages incorrectly without following the instructions?

    - The pieces do not fit together, if you force them, they will break.
    - Sections do not fit the middle panels, the holes seem to not fit,
    - A structure whose integrity is not complete and parts do not fit properly may occur,
    - Feeders do not fit, so the doors do not open fully,
    - Legs do not fully adapt to the body,
    - Many parts of your cage may be damaged.
    - For this reason, the cost of spare parts arises.

  • What should the floor on which the Comfortplast cages stand on?

    We recommend having a completely flat floor.
    Washable flat floors should be preferred.


    The floor must be absolutely level. Do not try leveling the cage this is the incorrect method.

  • What happens if I don't use my cage on a flat surface?

    - The lattice integrity begins to deteriorate,
    - Bends can be seen on the base frame and side legs,
    - Wheelhouses can break,
    - If the ground is too inclined, it forces the body to separate at the cage connection points.
    - Your maintenance and repair costs increase.

  • Since the Comfortplast cage has wheels, can I move it whenever I want?

    - Never move the cage with live birds and when the manure trays are full.
    - If the cage is to be moved, it must be empty and all manure trays must be removed.

  • What can I do if water is stops flowing to drinker nipple cups?

    Water is gravity fed through the hoses to the nipples. To use, birds must peck at the nipple to release water.

    Depending on the situation and where it stops flowing, the solution can be simple.

    If water stops flowing to an individual drinker cup after set up or filling the tank, than the issue is often air trapped in the line.

    Press each plastic nipple until water flows out.

    If water suddenly stops flowing to an entire row or the entire system, the the issue is often debris and sediment build up overtime. Check the water filter inside the water tank, if it's unclean than remove the pipes and flush it clean.
