Home » Egg Incubators » Cabinet Egg Incubators » HB350 S - Egg Incubator - Setter

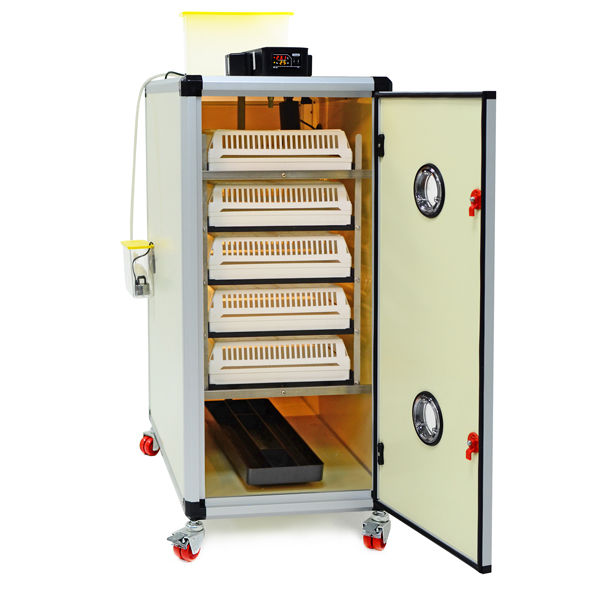

In this setter (S) model, set up to 350 chicken eggs at a time with 10 adjustable egg racks. This model can be used for quail, turkey, partridge, pheasant, peacock, goose and duck eggs. Hatcher Only and Combined Models can be purchased as well.

This highly insulated cabinet incubator offers a fully automated incubation experience with adjustable automatic egg turners and humidity / temperature sensors to encourage higher hatching rates and lower electrical bills. Easily check the temperature and humidity conditions of the room through the onboard display. Cimuka’s advanced control panel even has an alarm function to alert you if the room conditions change outside of your preset parameters.

Active Periodic Cooling (First in the market)
Most birds leave the nest, at least once, during incubation. During this time, the eggs cool down and release moisture. Active Periodic Cooling (APC) changes the temperature and humidity within the incubator to reenact the cooling and dehumidifying process that eggs would receive naturally from the mother bird leaving the nest. This unique addition to our incubators increases hatch rates. This is extremely important if you hatch goose eggs!

Capacity
Chicken Turkey-Duck Quail Partridge Pheasant Goose-Peacock
350 240 990 560 480 150

Need to hatch more at once? You can convert the upper setter trays to hatching baskets by removing the separators and purchasing Setter Tray Covers FLEXY35.


Technical Details
POWER - 220-240 VAC 50Hz
- Max:280W Average: 95W
- Low Energy Usage
TRAYS & BASKETS - 10 x Flexy35Y Adjustable incubation egg tray
CABINET - High insulation Double Wall sandwich panels,
- 12 mm evelation for easy cleaning and heat insulation,
- Eloxal aluminium cabinet body profiles,
- Double door design, 2nd door for back cleaning and service,
- Lockable double wheel for easy movement,
VENTILATION - AIRROUTETM ventilation technologie,
- Adjustable air in-out ventils,
HEATING & COOLING - DIGIFEELTMAutomatic digital PID* temperature control
- Electronic Sensor,
- Digital temperature display,
- Stainless electrical 250W heaters,
- Automatic cooling control,
*Today the PID concept is used universally in applications requiring accurate and optimised automatic control.
HUMIDITY - HUMISONICTM Full automatic humidifier system,
- Electronic humidity sensor,
- Digital humidity display,
- Water tank 4Lt,
- Automatic water intake from watertank for humidity,
- Control panel unconnected demountable humidity module,
TURNING - TurnXTM Full automatic egg turning system,
- SS304 Stainless turning mechanism,
- Parallel position button in control panel,
- Demountable motor driver, unconnected to the panel,
PROTECTION - All system is protected by fuses,
- Sensorless operating mode,
ALARMS - In machine Sensor & In Room Sensor Detect Separately!
- High - low temperature alarm,
- High - low humidity alarm,
DIMENSION/WEIGHT - 54 x 86 x 122(h) cm
- 35 kg
WARRANTY - 24/7 UK Technical Support,
- 1 year Manufacturer's Warranty




*We reserve the right to change specifications due to our policy of improvement.

This incubator uses internationally acknowledged 4 different patent technology.

DIGIFEELTM Automatic Digital PID1 Temperature Control; Cimuka uses its own digital control, sensor and software products in incubators. We specialize in electronic production and software team and develop special software for hatching.

Our patented brand DigifeelTM is a concept aimed at controlling the environmental changes such as temperature, humidity, pressure and gas with high-tech hardware solutions and work-specific software with the most precise control.

1 Today the PID concept is used universally in applications requiring accurate and optimised automatic control.

HUMISONICTM Full Automatic Humidity Control System; Our HumisonicTM patented humidification technology converts liquid water molecules into gas form with sound waves. The systems used without fans in incubator applications provide cabin humidification in natural air flow. This prevents humidification-induced cabin temperature differences.

Models with different humidification capacities have very low energy consumption. It is mounted on top of the machine and does not take up space. It provides external humidification and automatically takes its own water from the tank.

AIRROUTETM Ventilation Technology; Our patented ventilation technology makes AirrouteTM a difference in the hatch. It provides optimal temperature and humidity distribution in the cabinet, ensuring you achieve the highest efficiency with the lowest energy.

AirrouteTM Plus Ventilation products are produced in IP55 (min) protection class for damp and dusty water of the incubator. By providing a standard air cycle at all voltages from 90 to 265V, it eliminates voltage drop induced air distribution problems.

TurnXTM Full Automatic Egg Turning System; TURNXTM is our translation system for Hb and commercial serial models. Turning mechanisms ranging from 4800 eggs have a very low energy consumption of just 12W.

Unlike other turning systems, it is produced entirely in modular structure. All components such as mechanical arms, chains, stop sweaters, and ventilation interceptors have been eliminated. The systems offered with the special motor drive adapter are maintenance-free and can be easily installed and removed in the field.

All TURNXTM conveyor assemblies are available with chromium-steel SS304 material quality. All linear motion motors are manufactured in IPX6 protection class and are not affected by dust and humidity.

TURNXTM rack design is a first in the world. It is produced with curved structure plastic mold technology. This reduces mechanical vibration and reduces mechanical stress. Our motor drives for TURNXTM systems help to reduce mechanical stress by providing soft start and finishing.
