Home » Egg Incubators » Cabinet Egg Incubators » CT120 SH - Egg Incubator - Setter / Hatcher

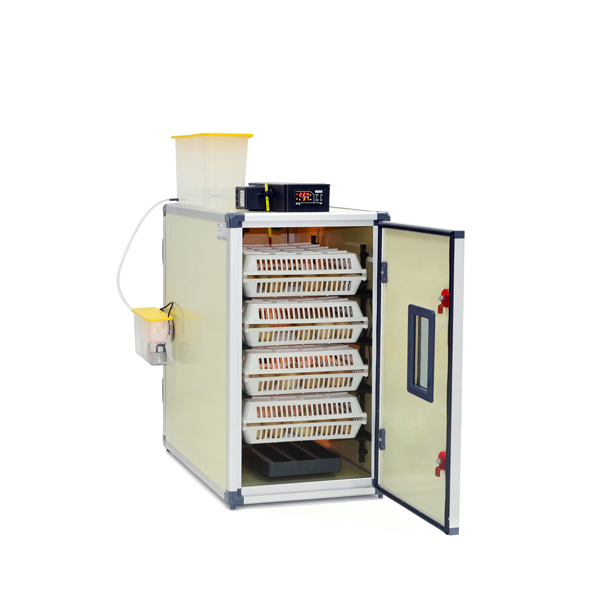

In this combined (SH) model, you can set and hatch eggs. This model can be used for chicken, quail, turkey, partridge, pheasant, peacock, goose and duck eggs.

This highly insulated cabinet incubator offers a fully automated incubation experience with adjustable automatic egg turners and humidity / temperature sensors to encourage higher hatching rates and lower electrical bills. Easily check the temperature and humidity conditions of the room through the onboard display. Cimuka's advanced control panel even has an alarm function to alert you if the room conditions change outside of your preset parameters.

Active Periodic Cooling (First in the market)
Most birds leave the nest, at least once, during incubation. During this time, the eggs cool down and release moisture. Active Periodic Cooling (APC) changes the temperature and humidity within the incubator to reenact the cooling and dehumidifying process that eggs would receive naturally from the mother bird leaving the nest. This unique addition to our incubators increases hatch rates. This is extremely important if you hatch goose eggs!

For Both Amateur & Professional Use

Capacity
Chicken Turkey-Duck Quail Partridge Pheasant Goose-Peacock
120 80 216 - 312* 168 144 48**


The egg trays inside the incubator are compatable with all birds stated above, to increase the amount for quail eggs the *QT13 Quail and for goose the **GT03 Goose with Channel Apparatus is optional.


Technical Details
POWER - 220-240 VAC 50Hz
- Max: 175W Average: 55W
- Low Energy Usage
TRAYS & BASKETS - 4 x CS30 Hatching Tray,
CABINET - High insulation Double Wall sandwich panels,
- Eloxal aluminium cabinet body profiles,
- Double door design, 2nd door for back cleaning and service,
VENTILATION - AIRROUTETM ventilation technologie,
- Adjustable air in-out ventils,
HEATING & COOLING - Automatic digital PID* temperature control,
- Electronic temperature Sensor,
- Digital temperature display,
- Stainless electrical 150W heaters,
*Today the PID concept is used universally in applications requiring accurate and optimised automatic control.
HUMIDITY - HumisonicTM Full automatic humidifier system,
- Electronic humidity sensor,
- Digital humidity display,
TURNING - 4 x ConturnTM 30 Fully automatic egg turner,
PROTECTION - All system is protected by fuses,
ALARMS In machine Sensor & In Room Sensor Detect Separately!
- High - low temperature alarm,
- High - low humidity alarm,
DIMENSION/WEIGHT - 36 x 60 x 72(h) cm
- 14kg.
WARRANTY - 24/7 UK Technical Support,
- 1 year Manufacturer's Warranty
*We reserve the right to change specifications due to our policy of improvement.

This incubator uses internationally acknowledged 4 different patent technology.

DIGIFEELTM Automatic Digital PID1 Temperature Control; Cimuka uses its own digital control, sensor and software products in incubators. We specialize in electronic production and software team and develop special software for hatching.

Our patented brand DigifeelTM is a concept aimed at controlling the environmental changes such as temperature, humidity, pressure and gas with high-tech hardware solutions and work-specific software with the most precise control.

1 Today the PID concept is used universally in applications requiring accurate and optimised automatic control.

HUMISONICTM Full Automatic Humidity Control System; Our HumisonicTM patented humidification technology converts liquid water molecules into gas form with sound waves. The systems used without fans in incubator applications provide cabin humidification in natural air flow. This prevents humidification-induced cabin temperature differences.

Models with different humidification capacities have very low energy consumption. It is mounted on top of the machine and does not take up space. It provides external humidification and automatically takes its own water from the tank.

AIRROUTETM Ventilation Technology; Our patented ventilation technology makes AirrouteTM a difference in the hatch. It provides optimal temperature and humidity distribution in the cabinet, ensuring you achieve the highest efficiency with the lowest energy.

AirrouteTM Plus Ventilation products are produced in IP55 (min) protection class for damp and dusty water of the incubator. By providing a standard air cycle at all voltages from 90 to 265V, it eliminates voltage drop induced air distribution problems.

The ConturnTM PD and CT group is an egg turning system designed for our incubation models. Our patented system is available for different egg types with different accessory options.

ConturnTM motors provide high savings with energy consumption under 1W in. Models produced with ABS material have long life and solid structure. Silent and vibration-free working structure minimizes the mechanical stress on the egg.

Increases your efficiency with a full 45 degree turn performance. It provides a 90 degree rotation for 2 hours without the need for a timer. It is available in 60, 120 and 180 ovarian products besides 10 and 30 ovarian models.

CT120 SH - Egg Incubator - Setter / Hatcher User Manual
CT120 SH - Egg Incubator - Setter / Hatcher

Send an Enquiry

If you cannot find answers to your questions on our product page, it is sufficient to contact us. We will inform you as soon as possible.

We will try to reply to you within 24 working hours.
Item Code: CT120SH

CT120 SH - Egg Incubator - Setter / Hatcher

| 4 Reviews | Write a review
Regular price: £902.00 ( Exclude VAT )
ORDER TODAY TO SAVE 3% OFF RRP £902.00
£874.94 In Stock

Spares Available

CT120 SH - Egg Incubator - Setter / Hatcher £874.94
Quantity:
Share this product

Product Reviews for CT120 SH - Egg Incubator - Setter / Hatcher

Average Customer Rating:
Showing Reviews ( 4 )
CT120 vs Brinsea OvaEasy 190
September 10, 2022
Reviewer: James Wilkerson
CT120 vs Brinsea Ova Easy 190
I purchased the CT120 SH to replace my 11 year old Brinsea Ova Easy 190 cabinet incubator. I should mention that the Brinsea product has paid for itself many times over, and worked flawlessly for many years. Since the Cimuka is still untested for durability and reliability, I’ll restrict myself to first impressions of it.

1. Cabinet quality. This is a weak area for the Brinsea, and the most noticeable difference between the incubators. Rust began to appear on the floor of the Brinsea cabinet within a few years, and is quite advanced at this time. Cleaning this surface after hatching is difficult and unpleasant. The insulation level appears weak compared the the CT as the walls are not as thick. The cabinet seemed to grow unstable when moved, and the door seal became compromised over time as the door no longer aligned squarely with the cabinet. In contrast, the CT makes intelligent use of rust-free aluminum and plastic, and the cabinet seems vastly superior in stability and strength. The provision of a back door is ingenious and makes post hatch cleanup a snap. I’m optimistic that the CT will prove more durable.

2. Turning mechanism. This is the failure that required me to replace the Brinsea. It’s unclear whether the problem is mechanical or computer related, but after replacing the turner motor the problem grew worse, and the turner fails to work automatically. Because the design calls for a single motor to turn three trays, it is inherently subject to total failure. I believe that over time, three trays fully loaded with turkey eggs proved too much for it. In contrast, while my initial impression of the Cimuka turners was negative due to their resemblance to the turners supplied for cheap styrofoam incubators, the build quality is much higher than those. Plus, the eventual inevitable motor failure will not be catastrophic. I plan to order a replacement motor to have on hand.

3. Humidity control. The Brinsea requires an add-on humidity pump which supplies a drip to a reservoir. This was effective but slow to rebound after opening the door. It is passive humidification compared to the active humidification of the CT. Additionally the tubing had to be tensioned perfectly, and I would spend a bit of time tinkering with it every time it needed replaced. However, I do have some concerns with failure of the CT heater, and will also order a backup. However, overall I am extremely impressed with the design of the CT over the Brinsea.

4. Electronic controls. Re-calibrating the Brinsea is extremely complicated, requiring calls to their technical support. They were helpful in walking me through the lengthy process. I will hope for an easier time should the CT require recalibration.

5. Price/Value. Six years ago I paid about £750 for my Ova Easy 190. Similar to what I just gave for the Cimuka. The Brinsea is now much, much higher than that. Given the durability issues of the Brinsea I’m confident the CT is a much better value.

Summary. My initial impressions of the CT120 are very positive. Perhaps it’s unfair to compare it with an 6 year old Brinsea, but the Brinsea’s progressive failure has led to a lot of frustration. I don’t like drop hundreds of pound on a product that has inherent design and durability flaws. At the least, the integrity of the cabinet itself should never become an issue. The CT120 seems built for the long haul. Especially, the design and integrity of the cabinet itself seems very high. The controls are intelligent and accessible. The components are easily accessible for replacement. The value compared to other high quality small cabinet incubators is exceptional.
2  of  3
people found this review helpful.     Was this review helpful to you?    Yes  /   No
Replacement for a 40 yr old incubator
September 3, 2021
Reviewer: Jodi A
I had a very well loved and old (40+ years) cabinet incubator I was using- called My Favorite. It did a great job but it was lousy on electric usage, had no turners, hard to regulate temp and humidity and was LOUD- not to mention cleaning was not something I looked forward to. After buying other products from crescentquail and being super happy, Iread more about review stating Replacement for a 40 yr old incubator decided to upgrade to a much nicer user and energy friendly incubator: the CT120SH. It arrived well packaged and was easy to assemble, essentially just plug a few things in and your ready to go. It is so quiet compared to what I was used to. Its well insulated, easy to clean, nice doors (on both sides), the turners slide in and out easily to switch between turner and basket, and you can run multiple hatches at the same time. The controls are a breeze as well. I'm kicking myself for not buying the bigger one.
2  of  2
people found this review helpful.     Was this review helpful to you?    Yes  /   No
Spacious, Easy to Use
July 20, 2016
Reviewer: Sam Perkins
This incubator is a very good value. All of the other cabinet incubators I looked at were twice the price, and not a lot more features. Overall, this is a good buy.
8  of  8
people found this review helpful.     Was this review helpful to you?    Yes  /   No
High Quality, Strong Performance
November 12, 2015
Reviewer: Lester Hamlin
Excellent incubator.
After extensive search on incubators i finally found a product that suit my needs, it was worth the wait! This incubator is extremely easy to use, and of the 4 hatches I was able to get through, I had 90-95% hatch rate on all fertile eggs. Very pleased with these results, can't wait to use it all season this spring!
9  of  10
people found this review helpful.     Was this review helpful to you?    Yes  /   No
